DP-203: Data Engineering on Microsoft Azure
General Overview
Litware, Inc, is an international car racing and manufacturing company that has 1,000 employees. Most employees are located in Europe. The company supports racing teams that complete in a worldwide racing series.
Physical Locations
Litware has two main locations: a main office in London, England, and a manufacturing plant in Berlin, Germany. During each race weekend, 100 engineers set up a remote portable office by using a VPN to connect the datacentre in the London office. The portable office is set up and torn down in approximately 20 different countries each year.
Existing environment
Race Central
During race weekends, Litware uses a primary application named Race Central. Each car has several sensors that send real-time telemetry data to the London datacentre. The data is used for real-time tracking of the cars.
Race Central also sends batch updates to an application named Mechanical Workflow by using Microsoft SQL Server Integration Services (SSIS).
The telemetry data is sent to a MongoDB database. A custom application then moves the data to databases in SQL Server 2017. The telemetry data in MongoDB has more than 500 attributes. The application changes the attribute names when the data is moved to SQL Server 2017.
The database structure contains both OLAP and OLTP databases.
Mechanical Workflow
Mechanical Workflow is used to track changes and improvements made to the cars during their lifetime.
Currently, Mechanical Workflow runs on SQL Server 2017 as an OLAP system.
Mechanical Workflow has a named Table1 that is 1 TB. Large aggregations are performed on a single column of Table 1.
Requirements
Planned Changes
Litware is the process of rearchitecting its data estate to be hosted in Azure. The company plans to decommission the London datacentre and move all its applications to an Azure datacentre.
Technical Requirements
Litware identifies the following technical requirements:
- Data collection for Race Central must be moved to Azure Cosmos DB and Azure SQL Database. The data must be written to the Azure datacentre closest to each race and must converge in the least amount of time.
- The query performance of Race Central must be stable, and the administrative time it takes to perform optimizations must be minimized.
- The datacentre for Mechanical Workflow must be moved to Azure SQL data Warehouse.
- Transparent data encryption (IDE) must be enabled on all data stores, whenever possible.
- An Azure Data Factory pipeline must be used to move data from Cosmos DB to SQL Database for Race Central. If the data load takes longer than 20 minutes, configuration changes must be made to Data Factory.
- The telemetry data must migrate toward a solution that is native to Azure.
- The telemetry data must be monitored for performance issues. You must adjust the Cosmos DB Request Units per second (RU/s) to maintain a performance SLA while minimizing the cost of the Ru/s.
Data Masking Requirements
During rare weekends, visitors will be able to enter the remote portable offices. Litware is concerned that some proprietary information might be exposed. The company identifies the following data masking requirements for the Race Central data that will be stored in SQL Database:
- Only show the last four digits of the values in a column named SuspensionSprings.
- Only Show a zero value for the values in a column named ShockOilWeight.
What should you implement to optimize SQL Database for Race Central to meet the technical requirements?
the
sp_update_stats stored procedureautomatic tuning
Query Store
the
dbcc checkdb commandAnswer is the
sp_update_stats stored procedureScenario: The query performance of Race Central must be stable, and the administrative time it takes to perform optimizations must be minimized.
sp_updatestats updates query optimization statistics on a table or indexed view. By default, the query optimizer already updates statistics as necessary to improve the query plan; in some cases you can improve query performance by using UPDATE STATISTICS or the stored procedure
sp_updatestats to update statistics more frequently than the default updates.References:
https://docs.microsoft.com/en-us/sql/relational-databases/system-stored-procedures/sp-updatestats-transact-sql?view=sql-server-ver15
General Overview
Litware, Inc, is an international car racing and manufacturing company that has 1,000 employees. Most employees are located in Europe. The company supports racing teams that complete in a worldwide racing series.
Physical Locations
Litware has two main locations: a main office in London, England, and a manufacturing plant in Berlin, Germany. During each race weekend, 100 engineers set up a remote portable office by using a VPN to connect the datacentre in the London office. The portable office is set up and torn down in approximately 20 different countries each year.
Existing environment
Race Central
During race weekends, Litware uses a primary application named Race Central. Each car has several sensors that send real-time telemetry data to the London datacentre. The data is used for real-time tracking of the cars.
Race Central also sends batch updates to an application named Mechanical Workflow by using Microsoft SQL Server Integration Services (SSIS).
The telemetry data is sent to a MongoDB database. A custom application then moves the data to databases in SQL Server 2017. The telemetry data in MongoDB has more than 500 attributes. The application changes the attribute names when the data is moved to SQL Server 2017.
The database structure contains both OLAP and OLTP databases.
Mechanical Workflow
Mechanical Workflow is used to track changes and improvements made to the cars during their lifetime.
Currently, Mechanical Workflow runs on SQL Server 2017 as an OLAP system.
Mechanical Workflow has a named Table1 that is 1 TB. Large aggregations are performed on a single column of Table 1.
Requirements
Planned Changes
Litware is the process of rearchitecting its data estate to be hosted in Azure. The company plans to decommission the London datacentre and move all its applications to an Azure datacentre.
Technical Requirements
Litware identifies the following technical requirements:
- Data collection for Race Central must be moved to Azure Cosmos DB and Azure SQL Database. The data must be written to the Azure datacentre closest to each race and must converge in the least amount of time.
- The query performance of Race Central must be stable, and the administrative time it takes to perform optimizations must be minimized.
- The datacentre for Mechanical Workflow must be moved to Azure SQL data Warehouse.
- Transparent data encryption (IDE) must be enabled on all data stores, whenever possible.
- An Azure Data Factory pipeline must be used to move data from Cosmos DB to SQL Database for Race Central. If the data load takes longer than 20 minutes, configuration changes must be made to Data Factory.
- The telemetry data must migrate toward a solution that is native to Azure.
- The telemetry data must be monitored for performance issues. You must adjust the Cosmos DB Request Units per second (RU/s) to maintain a performance SLA while minimizing the cost of the Ru/s.
Data Masking Requirements
During rare weekends, visitors will be able to enter the remote portable offices. Litware is concerned that some proprietary information might be exposed. The company identifies the following data masking requirements for the Race Central data that will be stored in SQL Database:
- Only show the last four digits of the values in a column named SuspensionSprings.
- Only Show a zero value for the values in a column named ShockOilWeight.
On which data store you configure TDE to meet the technical requirements?
Cosmos DB
Azure Synapse Analytics
SQL Database
Answer is Azure Synapse Analytics
Scenario: Transparent data encryption (TDE) must be enabled on all data stores, whenever possible.
The database for Mechanical Workflow must be moved to Azure Synapse Analytics.
Cosmos DB does not support TDE.
Overview
ADatum Corporation is a retailer that sells products through two sales channels: retail stores and a website.
Existing Environment
ADatum has one database server that has Microsoft SQL Server 2016 installed. The server hosts three mission-critical databases named SALESDB, DOCDB, and REPORTINGDB.
SALESDB collects data from the stored and the website.
DOCDB stored documents that connect to the sales data in SALESDB. The documents are stored in two different JSON formats based on the sales channel.
REPORTINGDB stores reporting data and contains server columnstore indexes. A daily process creates reporting data in REPORTINGDB from the data in SALESDB. The process is implemented as a SQL Server Integration Services (SSIS) package that runs a stored procedure from SALESDB.
Requirements
Planned Changes
ADatum plans to move the current data infrastructure to Azure. The new infrastructure has the following requirements:
- Migrate SALESDB and REPORTINGDB to an Azure SQL database.
- Migrate DOCDB to Azure Cosmos DB.
- The sales data including the documents in JSON format, must be gathered as it arrives and analyzed online by using Azure Stream Analytics. The analytic process will perform aggregations that must be done continuously, without gaps, and without overlapping.
- As they arrive, all the sales documents in JSON format must be transformed into one consistent format.
- Azure Data Factory will replace the SSIS process of copying the data from SALESDB to REPORTINGDB.
- Data in SALESDB must encrypted by using Transparent Data Encryption (TDE). The encryption must use your own key.
- SALESDB must be restorable to any given minute within the past three weeks.
- Real-time processing must be monitored to ensure that workloads are sized properly based on actual usage patterns.
- Missing indexes must be created automatically for REPORTINGDB.
- Disk IO, CPU, and memory usage must be monitored for SALESDB.
You need to configure a disaster recovery solution for SALESDB to meet the technical requirements.
What should you configure in the backup policy?
weekly long-term retention backups that are retained for three weeks
failover groups
a point-in-time restore
geo-replication
Answer is a point-in-time restore
Scenario: SALESDB must be restorable to any given minute within the past three weeks.
The Azure SQL Database service protects all databases with an automated backup system. These backups are retained for 7 days for Basic, 35 days for Standard and 35 days for Premium. Point-in-time restore is a self-service capability, allowing customers to restore a Basic, Standard or Premium database from these backups to any point within the retention period.
References:
https://azure.microsoft.com/en-us/blog/azure-sql-database-point-in-time-restore/
Overview
ADatum Corporation is a retailer that sells products through two sales channels: retail stores and a website.
Existing Environment
ADatum has one database server that has Microsoft SQL Server 2016 installed. The server hosts three mission-critical databases named SALESDB, DOCDB, and REPORTINGDB.
SALESDB collects data from the stored and the website.
DOCDB stored documents that connect to the sales data in SALESDB. The documents are stored in two different JSON formats based on the sales channel.
REPORTINGDB stores reporting data and contains server columnstore indexes. A daily process creates reporting data in REPORTINGDB from the data in SALESDB. The process is implemented as a SQL Server Integration Services (SSIS) package that runs a stored procedure from SALESDB.
Requirements
Planned Changes
ADatum plans to move the current data infrastructure to Azure. The new infrastructure has the following requirements:
- Migrate SALESDB and REPORTINGDB to an Azure SQL database.
- Migrate DOCDB to Azure Cosmos DB.
- The sales data including the documents in JSON format, must be gathered as it arrives and analyzed online by using Azure Stream Analytics. The analytic process will perform aggregations that must be done continuously, without gaps, and without overlapping.
- As they arrive, all the sales documents in JSON format must be transformed into one consistent format.
- Azure Data Factory will replace the SSIS process of copying the data from SALESDB to REPORTINGDB.
The new Azure data infrastructure must meet the following technical requirements:
- Data in SALESDB must encrypted by using Transparent Data Encryption (TDE). The encryption must use your own key.
- SALESDB must be restorable to any given minute within the past three weeks.
- Real-time processing must be monitored to ensure that workloads are sized properly based on actual usage patterns.
- Missing indexes must be created automatically for REPORTINGDB.
- Disk IO, CPU, and memory usage must be monitored for SALESDB.
You need to implement event processing by using Stream Analytics to produce consistent JSON documents.
Which three actions should you perform?
Define an output to Cosmos DB.
Define a query that contains a JavaScript user-defined aggregates (UDA) function.
Define a reference input.
Define a transformation query.
Define an output to Azure Data Lake Storage Gen2.
Define a stream input.
Answers are;
Define a transformation query.
Define an output to Azure Data Lake Storage Gen2.
Define a stream input.
- DOCDB stored documents that connect to the sales data in SALESDB. The documents are stored in two different JSON formats based on the sales channel.
- The sales data including the documents in JSON format, must be gathered as it arrives and analyzed online by using Azure Stream Analytics. The analytic process will perform aggregations that must be done continuously, without gaps, and without overlapping.
- As they arrive, all the sales documents in JSON format must be transformed into one consistent format.
Current environment
Contoso relies on an extensive partner network for marketing, sales, and distribution. Contoso uses external companies that manufacture everything from the actual pharmaceutical to the packaging.
The majority of the company’s data reside in Microsoft SQL Server database. Application databases fall into one of the following tiers:
The company has a reporting infrastructure that ingests data from local databases and partner services. Partners services consists of distributors, wholesales, and retailers across the world. The company performs daily, weekly, and monthly reporting.
Requirements
Tier 3 and Tier 6 through Tier 8 application must use database density on the same server and Elastic pools in a cost-effective manner.
Applications must still have access to data from both internal and external applications keeping the data encrypted and secure at rest and in transit.
A disaster recovery strategy must be implemented for Tier 3 and Tier 6 through 8 allowing for failover in the case of server going offline.
Selected internal applications must have the data hosted in single Microsoft Azure SQL Databases.
- Tier 1 internal applications on the premium P2 tier
- Tier 2 internal applications on the standard S4 tier
Tier 7 and Tier 8 partner access must be restricted to the database only.
In addition to default Azure backup behavior, Tier 4 and 5 databases must be on a backup strategy that performs a transaction log backup eve hour, a differential backup of databases every day and a full back up every week.
Back up strategies must be put in place for all other standalone Azure SQL Databases using Azure SQL-provided backup storage and capabilities.
Databases
Contoso requires their data estate to be designed and implemented in the Azure Cloud. Moving to the cloud must not inhibit access to or availability of data.
Databases:
Tier 1 Database must implement data masking using the following masking logic:
Tier 2 databases must sync between branches and cloud databases and in the event of conflicts must be set up for conflicts to be won by on-premises databases.
Tier 3 and Tier 6 through Tier 8 applications must use database density on the same server and Elastic pools in a cost-effective manner.
Applications must still have access to data from both internal and external applications keeping the data encrypted and secure at rest and in transit.
A disaster recovery strategy must be implemented for Tier 3 and Tier 6 through 8 allowing for failover in the case of a server going offline.
Selected internal applications must have the data hosted in single Microsoft Azure SQL Databases.
- Tier 1 internal applications on the premium P2 tier
- Tier 2 internal applications on the standard S4 tier
Reporting
Security and monitoring
Security
A method of managing multiple databases in the cloud at the same time is must be implemented to streamlining data management and limiting management access to only those requiring access.
Monitoring
Monitoring must be set up on every database. Contoso and partners must receive performance reports as part of contractual agreements.
Tiers 6 through 8 must have unexpected resource storage usage immediately reported to data engineers.
The Azure SQL Data Warehouse cache must be monitored when the database is being used. A dashboard monitoring key performance indicators (KPIs) indicated by traffic lights must be created and displayed based on the following metrics:
Existing Data Protection and Security compliances require that all certificates and keys are internally managed in an on-premises storage.
You identify the following reporting requirements:
- Azure Data Warehousüe must be used to gather and query data from multiple internal and external databases
- Azure Data Warehouse must be optimized to use data from a cache
- Reporting data aggregated for external partners must be stored in Azure Storage and be made available during regular business hours in the connecting regions
- Reporting strategies must be improved to real time or near real time reporting cadence to improve competitiveness and the general supply chain
- Tier 9 reporting must be moved to Event Hubs, queried, and persisted in the same Azure region as the company’s main office
- Tier 10 reporting data must be stored in Azure Blobs
Issues
Team members identify the following issues:
- Both internal and external client application run complex joins, equality searches and group-by clauses. Because some systems are managed externally, the queries will not be changed or optimized by Contoso
- External partner organization data formats, types and schemas are controlled by the partner companies
- Internal and external database development staff resources are primarily SQL developers familiar with the Transact-SQL language.
- Size and amount of data has led to applications and reporting solutions not performing are required speeds
- Tier 7 and 8 data access is constrained to single endpoints managed by partners for access
- The company maintains several legacy client applications. Data for these applications remains isolated form other applications. This has led to hundreds of databases being provisioned on a per application basis.

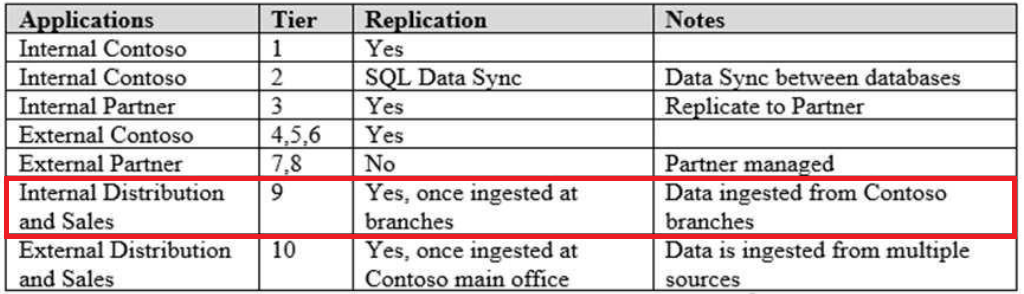

You need to process and query ingested Tier 9 data.
Which two options should you use?
Azure Notification Hub
Transact-SQL statements
Apache Kafka statements
Azure Event Grid
Azure Cache for Redis
Azure Stream Analytics
Answers are;
Azure Event Grid
Azure Stream Analytics
Event Hubs provides a Kafka endpoint that can be used by your existing Kafka based applications as an alternative to running your own Kafka cluster.
You can stream data into Kafka-enabled Event Hubs and process it with Azure Stream Analytics, in the following steps:
- Create a Kafka enabled Event Hubs namespace.
- Create a Kafka client that sends messages to the event hub.
- Create a Stream Analytics job that copies data from the event hub into an Azure blob storage.
Tier 9 reporting must be moved to Event Hubs, queried, and persisted in the same Azure region as the company’s main office
References:
https://docs.microsoft.com/en-us/azure/event-hubs/event-hubs-kafka-stream-analytics
Current environment
Contoso relies on an extensive partner network for marketing, sales, and distribution. Contoso uses external companies that manufacture everything from the actual pharmaceutical to the packaging.
The majority of the company’s data reside in Microsoft SQL Server database. Application databases fall into one of the following tiers:
The company has a reporting infrastructure that ingests data from local databases and partner services. Partners services consists of distributors, wholesales, and retailers across the world. The company performs daily, weekly, and monthly reporting.
Requirements
Tier 3 and Tier 6 through Tier 8 application must use database density on the same server and Elastic pools in a cost-effective manner.
Applications must still have access to data from both internal and external applications keeping the data encrypted and secure at rest and in transit.
A disaster recovery strategy must be implemented for Tier 3 and Tier 6 through 8 allowing for failover in the case of server going offline.
Selected internal applications must have the data hosted in single Microsoft Azure SQL Databases.
- Tier 1 internal applications on the premium P2 tier
- Tier 2 internal applications on the standard S4 tier
Tier 7 and Tier 8 partner access must be restricted to the database only.
In addition to default Azure backup behavior, Tier 4 and 5 databases must be on a backup strategy that performs a transaction log backup eve hour, a differential backup of databases every day and a full back up every week.
Back up strategies must be put in place for all other standalone Azure SQL Databases using Azure SQL-provided backup storage and capabilities.
Databases
Contoso requires their data estate to be designed and implemented in the Azure Cloud. Moving to the cloud must not inhibit access to or availability of data.
Databases:
Tier 1 Database must implement data masking using the following masking logic:
Tier 2 databases must sync between branches and cloud databases and in the event of conflicts must be set up for conflicts to be won by on-premises databases.
Tier 3 and Tier 6 through Tier 8 applications must use database density on the same server and Elastic pools in a cost-effective manner.
Applications must still have access to data from both internal and external applications keeping the data encrypted and secure at rest and in transit.
A disaster recovery strategy must be implemented for Tier 3 and Tier 6 through 8 allowing for failover in the case of a server going offline.
Selected internal applications must have the data hosted in single Microsoft Azure SQL Databases.
- Tier 1 internal applications on the premium P2 tier
- Tier 2 internal applications on the standard S4 tier
Security
A method of managing multiple databases in the cloud at the same time is must be implemented to streamlining data management and limiting management access to only those requiring access.
Monitoring
Monitoring must be set up on every database. Contoso and partners must receive performance reports as part of contractual agreements.
Tiers 6 through 8 must have unexpected resource storage usage immediately reported to data engineers.
The Azure SQL Data Warehouse cache must be monitored when the database is being used. A dashboard monitoring key performance indicators (KPIs) indicated by traffic lights must be created and displayed based on the following metrics:
Existing Data Protection and Security compliances require that all certificates and keys are internally managed in an on-premises storage.
You identify the following reporting requirements:
- Azure Data Warehousüe must be used to gather and query data from multiple internal and external databases
- Azure Data Warehouse must be optimized to use data from a cache
- Reporting data aggregated for external partners must be stored in Azure Storage and be made available during regular business hours in the connecting regions
- Reporting strategies must be improved to real time or near real time reporting cadence to improve competitiveness and the general supply chain
- Tier 9 reporting must be moved to Event Hubs, queried, and persisted in the same Azure region as the company’s main office
- Tier 10 reporting data must be stored in Azure Blobs
Issues
Team members identify the following issues:
- Both internal and external client application run complex joins, equality searches and group-by clauses. Because some systems are managed externally, the queries will not be changed or optimized by Contoso
- External partner organization data formats, types and schemas are controlled by the partner companies
- Internal and external database development staff resources are primarily SQL developers familiar with the Transact-SQL language.
- Size and amount of data has led to applications and reporting solutions not performing are required speeds
- Tier 7 and 8 data access is constrained to single endpoints managed by partners for access
- The company maintains several legacy client applications. Data for these applications remains isolated form other applications. This has led to hundreds of databases being provisioned on a per application basis.
You need to set up Azure Data Factory pipelines to meet data movement requirements. Which integration runtime should you use?
self-hosted integration runtime
Azure-SSIS Integration Runtime
.NET Common Language Runtime (CLR)
Azure integration runtime
Answer is self-hosted integration runtime

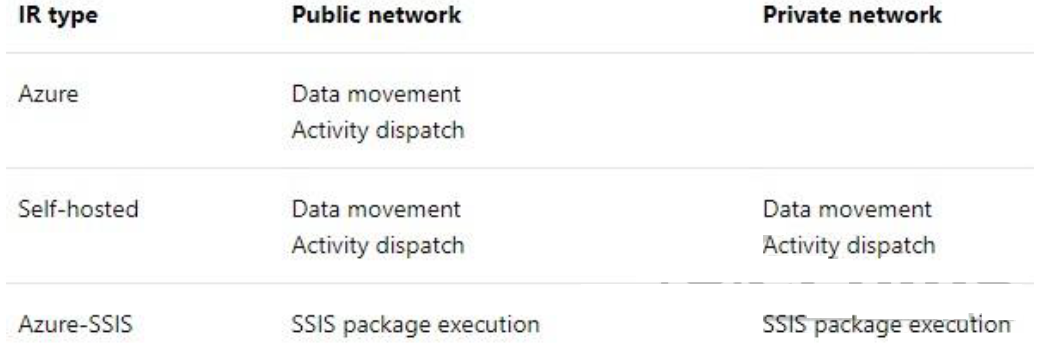

The following table describes the capabilities and network support for each of the integration runtime types:
Scenario: The solution must support migrating databases that support external and internal application to Azure SQL Database. The migrated databases will be supported by Azure Data Factory pipelines for the continued movement, migration and updating of data both in the cloud and from local core business systems and repositories.
References:
https://docs.microsoft.com/en-us/azure/data-factory/concepts-integration-runtime
General Overview
Litware, Inc, is an international car racing and manufacturing company that has 1,000 employees. Most employees are located in Europe. The company supports racing teams that complete in a worldwide racing series.
Physical Locations
Litware has two main locations: a main office in London, England, and a manufacturing plant in Berlin, Germany. During each race weekend, 100 engineers set up a remote portable office by using a VPN to connect the datacentre in the London office. The portable office is set up and torn down in approximately 20 different countries each year.
Existing environment
Race Central
During race weekends, Litware uses a primary application named Race Central. Each car has several sensors that send real-time telemetry data to the London datacentre. The data is used for real-time tracking of the cars.
Race Central also sends batch updates to an application named Mechanical Workflow by using Microsoft SQL Server Integration Services (SSIS).
The telemetry data is sent to a MongoDB database. A custom application then moves the data to databases in SQL Server 2017. The telemetry data in MongoDB has more than 500 attributes. The application changes the attribute names when the data is moved to SQL Server 2017.
The database structure contains both OLAP and OLTP databases.
Mechanical Workflow
Mechanical Workflow is used to track changes and improvements made to the cars during their lifetime.
Currently, Mechanical Workflow runs on SQL Server 2017 as an OLAP system.
Mechanical Workflow has a named Table1 that is 1 TB. Large aggregations are performed on a single column of Table 1.
Requirements
Planned Changes
Litware is the process of rearchitecting its data estate to be hosted in Azure. The company plans to decommission the London datacentre and move all its applications to an Azure datacentre.
Technical Requirements
Litware identifies the following technical requirements:
- Data collection for Race Central must be moved to Azure Cosmos DB and Azure SQL Database. The data must be written to the Azure datacentre closest to each race and must converge in the least amount of time.
- The query performance of Race Central must be stable, and the administrative time it takes to perform optimizations must be minimized.
- The datacentre for Mechanical Workflow must be moved to Azure SQL data Warehouse.
- Transparent data encryption (IDE) must be enabled on all data stores, whenever possible.
- An Azure Data Factory pipeline must be used to move data from Cosmos DB to SQL Database for Race Central. If the data load takes longer than 20 minutes, configuration changes must be made to Data Factory.
- The telemetry data must migrate toward a solution that is native to Azure.
- The telemetry data must be monitored for performance issues. You must adjust the Cosmos DB Request Units per second (RU/s) to maintain a performance SLA while minimizing the cost of the Ru/s.
During rare weekends, visitors will be able to enter the remote portable offices. Litware is concerned that some proprietary information might be exposed. The company identifies the following data masking requirements for the Race Central data that will be stored in SQL Database:
- Only show the last four digits of the values in a column named SuspensionSprings.
- Only Show a zero value for the values in a column named ShockOilWeight.
What should you include in the Data Factory pipeline for Race Central?
a copy activity that uses a stored procedure as a source
a copy activity that contains schema mappings
a delete activity that has logging enabled
a filter activity that has a condition
Answer is a copy activity that contains schema mappings
Scenario:
An Azure Data Factory pipeline must be used to move data from Cosmos DB to SQL Database for Race Central. If the data load takes longer than 20 minutes, configuration changes must be made to Data Factory.
The telemetry data is sent to a MongoDB database. A custom application then moves the data to databases in SQL Server 2017. The telemetry data in MongoDB has more than 500 attributes. The application changes the attribute names when the data is moved to SQL Server 2017.
You can copy data to or from Azure Cosmos DB (SQL API) by using Azure Data Factory pipeline.
Column mapping applies when copying data from source to sink. By default, copy activity map source data to sink by column names. You can specify explicit mapping to customize the column mapping based on your need. More specifically, copy activity:
Read the data from source and determine the source schema
1. Use default column mapping to map columns by name, or apply explicit column mapping if specified.
2. Write the data to sink
3. Write the data to sink
Reference:
https://docs.microsoft.com/en-us/azure/data-factory/copy-activity-schema-and-type-mapping
Overview
ADatum Corporation is a retailer that sells products through two sales channels: retail stores and a website.
Existing Environment
ADatum has one database server that has Microsoft SQL Server 2016 installed. The server hosts three mission-critical databases named SALESDB, DOCDB, and REPORTINGDB.
SALESDB collects data from the stored and the website.
DOCDB stored documents that connect to the sales data in SALESDB. The documents are stored in two different JSON formats based on the sales channel.
REPORTINGDB stores reporting data and contains server columnstore indexes. A daily process creates reporting data in REPORTINGDB from the data in SALESDB. The process is implemented as a SQL Server Integration Services (SSIS) package that runs a stored procedure from SALESDB.
Requirements
Planned Changes
ADatum plans to move the current data infrastructure to Azure. The new infrastructure has the following requirements:
- Migrate SALESDB and REPORTINGDB to an Azure SQL database.
- Migrate DOCDB to Azure Cosmos DB.
- The sales data including the documents in JSON format, must be gathered as it arrives and analyzed online by using Azure Stream Analytics. The analytic process will perform aggregations that must be done continuously, without gaps, and without overlapping.
- As they arrive, all the sales documents in JSON format must be transformed into one consistent format.
- Azure Data Factory will replace the SSIS process of copying the data from SALESDB to REPORTINGDB.
The new Azure data infrastructure must meet the following technical requirements:
- Data in SALESDB must encrypted by using Transparent Data Encryption (TDE). The encryption must use your own key.
- SALESDB must be restorable to any given minute within the past three weeks.
- Real-time processing must be monitored to ensure that workloads are sized properly based on actual usage patterns.
- Missing indexes must be created automatically for REPORTINGDB.
- Disk IO, CPU, and memory usage must be monitored for SALESDB.
Which windowing function should you use to perform the streaming aggregation of the sales data?
Tumbling
Hopping
Sliding
Session
Answer is Tumbling
Scenario:
The analytic process will perform aggregations that must be done continuously, without gaps, and without overlapping.
The key differentiators of a Tumbling window are that they repeat, do not overlap, and an event cannot belong to more than one tumbling window.
Incorrect Answers:
Like hopping windows, events can belong to more than one sliding window. D: Session windows can have gaps.
References:
https://docs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-window-functions
Current environment
Contoso relies on an extensive partner network for marketing, sales, and distribution. Contoso uses external companies that manufacture everything from the actual pharmaceutical to the packaging.
The majority of the company’s data reside in Microsoft SQL Server database. Application databases fall into one of the following tiers:
The company has a reporting infrastructure that ingests data from local databases and partner services. Partners services consists of distributors, wholesales, and retailers across the world. The company performs daily, weekly, and monthly reporting.
Requirements
Tier 3 and Tier 6 through Tier 8 application must use database density on the same server and Elastic pools in a cost-effective manner.
Applications must still have access to data from both internal and external applications keeping the data encrypted and secure at rest and in transit.
A disaster recovery strategy must be implemented for Tier 3 and Tier 6 through 8 allowing for failover in the case of server going offline.
Selected internal applications must have the data hosted in single Microsoft Azure SQL Databases.
- Tier 1 internal applications on the premium P2 tier
- Tier 2 internal applications on the standard S4 tier
Tier 7 and Tier 8 partner access must be restricted to the database only.
In addition to default Azure backup behavior, Tier 4 and 5 databases must be on a backup strategy that performs a transaction log backup eve hour, a differential backup of databases every day and a full back up every week.
Back up strategies must be put in place for all other standalone Azure SQL Databases using Azure SQL-provided backup storage and capabilities.
Databases
Contoso requires their data estate to be designed and implemented in the Azure Cloud. Moving to the cloud must not inhibit access to or availability of data.
Databases:
Tier 1 Database must implement data masking using the following masking logic:
Tier 2 databases must sync between branches and cloud databases and in the event of conflicts must be set up for conflicts to be won by on-premises databases.
Tier 3 and Tier 6 through Tier 8 applications must use database density on the same server and Elastic pools in a cost-effective manner.
Applications must still have access to data from both internal and external applications keeping the data encrypted and secure at rest and in transit.
A disaster recovery strategy must be implemented for Tier 3 and Tier 6 through 8 allowing for failover in the case of a server going offline.
Selected internal applications must have the data hosted in single Microsoft Azure SQL Databases.
- Tier 1 internal applications on the premium P2 tier
- Tier 2 internal applications on the standard S4 tier
Security
A method of managing multiple databases in the cloud at the same time is must be implemented to streamlining data management and limiting management access to only those requiring access.
Monitoring
Monitoring must be set up on every database. Contoso and partners must receive performance reports as part of contractual agreements.
Tiers 6 through 8 must have unexpected resource storage usage immediately reported to data engineers.
The Azure SQL Data Warehouse cache must be monitored when the database is being used. A dashboard monitoring key performance indicators (KPIs) indicated by traffic lights must be created and displayed based on the following metrics:
Existing Data Protection and Security compliances require that all certificates and keys are internally managed in an on-premises storage.
You identify the following reporting requirements:
- Azure Data Warehousüe must be used to gather and query data from multiple internal and external databases
- Azure Data Warehouse must be optimized to use data from a cache
- Reporting data aggregated for external partners must be stored in Azure Storage and be made available during regular business hours in the connecting regions
- Reporting strategies must be improved to real time or near real time reporting cadence to improve competitiveness and the general supply chain
- Tier 9 reporting must be moved to Event Hubs, queried, and persisted in the same Azure region as the company’s main office
- Tier 10 reporting data must be stored in Azure Blobs
Issues
Team members identify the following issues:
- Both internal and external client application run complex joins, equality searches and group-by clauses. Because some systems are managed externally, the queries will not be changed or optimized by Contoso
- External partner organization data formats, types and schemas are controlled by the partner companies
- Internal and external database development staff resources are primarily SQL developers familiar with the Transact-SQL language.
- Size and amount of data has led to applications and reporting solutions not performing are required speeds
- Tier 7 and 8 data access is constrained to single endpoints managed by partners for access
- The company maintains several legacy client applications. Data for these applications remains isolated form other applications. This has led to hundreds of databases being provisioned on a per application basis.
You need to configure data encryption for external applications.
Solution:
1. Access the Always Encrypted Wizard in SQL Server Management Studio
2. Select the column to be encrypted
3. Set the encryption type to Randomized
4. Configure the master key to use the Windows Certificate Store
5. Validate configuration results and deploy the solution
Does the solution meet the goal?
Yes
No
Answer is No
Use the Azure Key Vault, not the Windows Certificate Store, to store the master key.

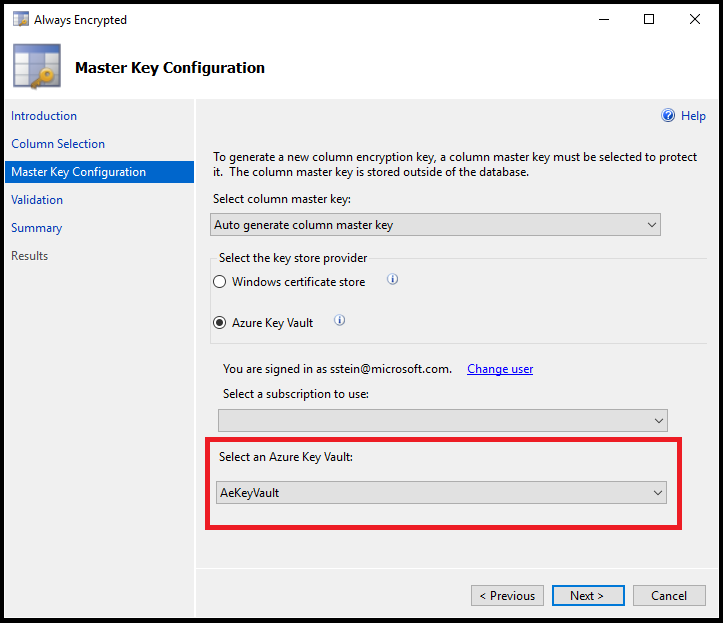

Note: The Master Key Configuration page is where you set up your CMK (Column Master Key) and select the key store provider where the CMK will be stored.
Currently, you can store a CMK in the Windows certificate store, Azure Key Vault, or a hardware security module (HSM).
References:
https://docs.microsoft.com/en-us/azure/sql-database/sql-database-always-encrypted-azure-key-vault
Current environment
Contoso relies on an extensive partner network for marketing, sales, and distribution. Contoso uses external companies that manufacture everything from the actual pharmaceutical to the packaging.
The majority of the company’s data reside in Microsoft SQL Server database. Application databases fall into one of the following tiers:
The company has a reporting infrastructure that ingests data from local databases and partner services. Partners services consists of distributors, wholesales, and retailers across the world. The company performs daily, weekly, and monthly reporting.
Requirements
Tier 3 and Tier 6 through Tier 8 application must use database density on the same server and Elastic pools in a cost-effective manner.
Applications must still have access to data from both internal and external applications keeping the data encrypted and secure at rest and in transit.
A disaster recovery strategy must be implemented for Tier 3 and Tier 6 through 8 allowing for failover in the case of server going offline.
Selected internal applications must have the data hosted in single Microsoft Azure SQL Databases.
- Tier 1 internal applications on the premium P2 tier
- Tier 2 internal applications on the standard S4 tier
Tier 7 and Tier 8 partner access must be restricted to the database only.
In addition to default Azure backup behavior, Tier 4 and 5 databases must be on a backup strategy that performs a transaction log backup eve hour, a differential backup of databases every day and a full back up every week.
Back up strategies must be put in place for all other standalone Azure SQL Databases using Azure SQL-provided backup storage and capabilities.
Databases
Contoso requires their data estate to be designed and implemented in the Azure Cloud. Moving to the cloud must not inhibit access to or availability of data.
Databases:
Tier 1 Database must implement data masking using the following masking logic:
Tier 2 databases must sync between branches and cloud databases and in the event of conflicts must be set up for conflicts to be won by on-premises databases.
Tier 3 and Tier 6 through Tier 8 applications must use database density on the same server and Elastic pools in a cost-effective manner.
Applications must still have access to data from both internal and external applications keeping the data encrypted and secure at rest and in transit.
A disaster recovery strategy must be implemented for Tier 3 and Tier 6 through 8 allowing for failover in the case of a server going offline.
Selected internal applications must have the data hosted in single Microsoft Azure SQL Databases.
- Tier 1 internal applications on the premium P2 tier
- Tier 2 internal applications on the standard S4 tier
Security
A method of managing multiple databases in the cloud at the same time is must be implemented to streamlining data management and limiting management access to only those requiring access.
Monitoring
Monitoring must be set up on every database. Contoso and partners must receive performance reports as part of contractual agreements.
Tiers 6 through 8 must have unexpected resource storage usage immediately reported to data engineers.
The Azure SQL Data Warehouse cache must be monitored when the database is being used. A dashboard monitoring key performance indicators (KPIs) indicated by traffic lights must be created and displayed based on the following metrics:
Existing Data Protection and Security compliances require that all certificates and keys are internally managed in an on-premises storage.
You identify the following reporting requirements:
- Azure Data Warehousüe must be used to gather and query data from multiple internal and external databases
- Azure Data Warehouse must be optimized to use data from a cache
- Reporting data aggregated for external partners must be stored in Azure Storage and be made available during regular business hours in the connecting regions
- Reporting strategies must be improved to real time or near real time reporting cadence to improve competitiveness and the general supply chain
- Tier 9 reporting must be moved to Event Hubs, queried, and persisted in the same Azure region as the company’s main office
- Tier 10 reporting data must be stored in Azure Blobs
Issues
Team members identify the following issues:
- Both internal and external client application run complex joins, equality searches and group-by clauses. Because some systems are managed externally, the queries will not be changed or optimized by Contoso
- External partner organization data formats, types and schemas are controlled by the partner companies
- Internal and external database development staff resources are primarily SQL developers familiar with the Transact-SQL language.
- Size and amount of data has led to applications and reporting solutions not performing are required speeds
- Tier 7 and 8 data access is constrained to single endpoints managed by partners for access
- The company maintains several legacy client applications. Data for these applications remains isolated form other applications. This has led to hundreds of databases being provisioned on a per application basis.
You need to configure data encryption for external applications.
Solution:
1. Access the Always Encrypted Wizard in SQL Server Management Studio
2. Select the column to be encrypted
3. Set the encryption type to Deterministic
4. Configure the master key to use the Azure Key Vault
5. Validate configuration results and deploy the solution
Does the solution meet the goal?
Yes
No
Answer is Yes
We use the Azure Key Vault, not the Windows Certificate Store, to store the master key.
Note: The Master Key Configuration page is where you set up your CMK (Column Master Key) and select the key store provider where the CMK will be stored.
Currently, you can store a CMK in the Windows certificate store, Azure Key Vault, or a hardware security module (HSM).
References:
https://docs.microsoft.com/en-us/azure/sql-database/sql-database-always-encrypted-azure-key-vault
