DP-203: Data Engineering on Microsoft Azure

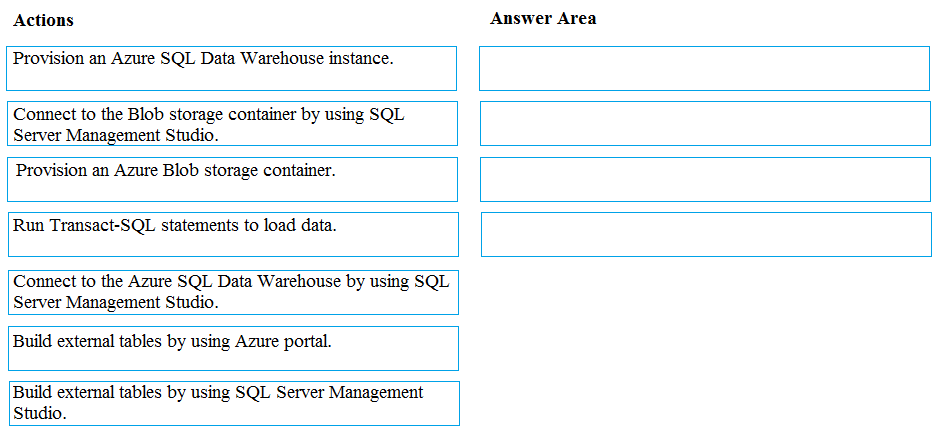

You develop data engineering solutions for a company. You must migrate data from Microsoft Azure Blob storage to an Azure SQL Data Warehouse for further transformation. You need to implement the solution.
Which four actions should you perform in sequence?
Check the answer section
Step 1: Provision an Azure SQL Data Warehouse instance.
Create a data warehouse in the Azure portal.
Step 2: Connect to the Azure SQL Data warehouse by using SQL Server Management Studio
Connect to the data warehouse with SSMS (SQL Server Management Studio)
Step 3: Build external tables by using the SQL Server Management Studio
Create external tables for data in Azure blob storage.
You are ready to begin the process of loading data into your new data warehouse. You use external tables to load data from the Azure storage blob.
Step 4: Run Transact-SQL statements to load data.
You can use the CREATE TABLE AS SELECT (CTAS) T-SQL statement to load the data from Azure Storage Blob into new tables in your data warehouse.
References:
https://github.com/MicrosoftDocs/azure-docs/blob/master/articles/sql-data-warehouse/load-data-from-azure-blob-storage-using-polybase.md

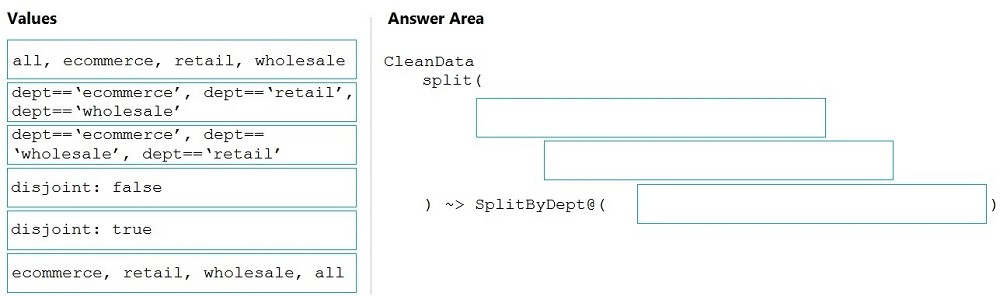

You need to create an Azure Data Factory pipeline to process data for the following three departments at your company: Ecommerce, retail, and wholesale. The solution must ensure that data can also be processed for the entire company.
How should you complete the Data Factory data flow script?
The conditional split transformation routes data rows to different streams based on matching conditions. The conditional split transformation is similar to a CASE decision structure in a programming language. The transformation evaluates expressions, and based on the results, directs the data row to the specified stream.
Box 1: dept=='ecommerce', dept=='retail', dept=='wholesale'
First we put the condition. The order must match the stream labeling we define in Box 3.
Syntax:
(incomingStream)
split(
(conditionalExpression1)
(conditionalExpression2)
...
disjoint: {true | false}
) ~> (splitTx)@(stream1, stream2, ..., (defaultStream))
Box 2: discount : false
disjoint is false because the data goes to the first matching condition. All remaining rows matching the third condition go to output stream all.
Box 3: ecommerce, retail, wholesale, all
Reference:
https://docs.microsoft.com/en-us/azure/data-factory/data-flow-conditional-split
You develop data engineering solutions for a company.

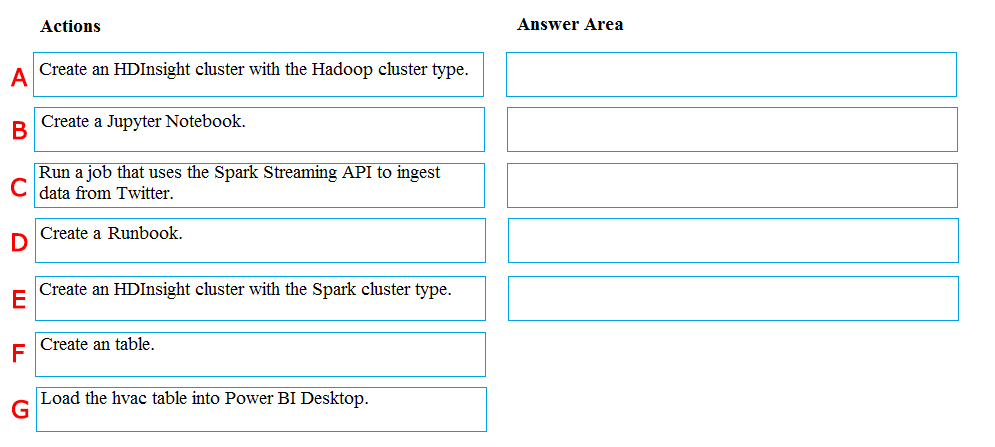

A project requires analysis of real-time Twitter feeds. Posts that contain specific keywords must be stored and processed on Microsoft Azure and then displayed by using Microsoft Power BI. You need to implement the solution.
Which five actions should you perform in sequence?

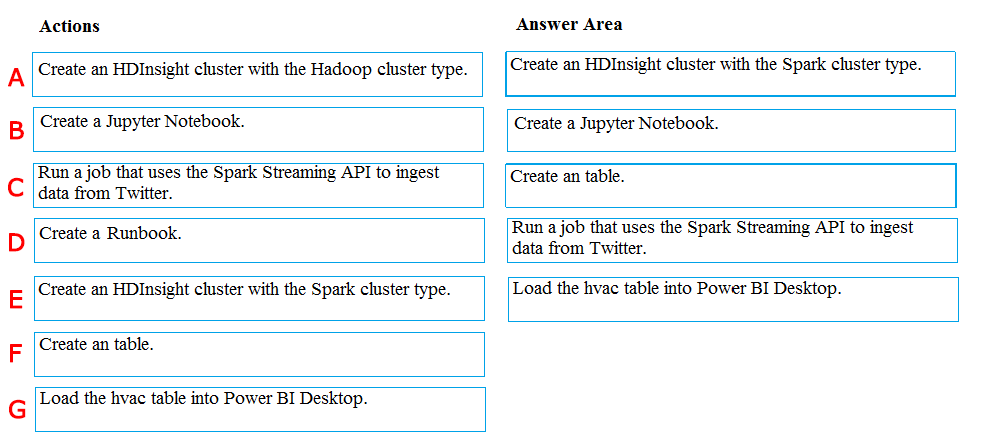

Answer is A - B - F - C - G
Step 1: Create an HDInisght cluster with the Spark cluster type
Step 2: Create a Jyputer Notebook
Step 3: Create a table
The Jupyter Notebook that you created in the previous step includes code to create an hvac table.
Step 4: Run a job that uses the Spark Streaming API to ingest data from Twitter
Step 5: Load the hvac table into Power BI Desktop
You use Power BI to create visualizations, reports, and dashboards from the Spark cluster data.
References:
https://acadgild.com/blog/streaming-twitter-data-using-spark
https://docs.microsoft.com/en-us/azure/hdinsight/spark/apache-spark-use-with-data-lake-store
You have an Azure SQL database named DB1 in the East US 2 region.
You need to build a secondary geo-replicated copy of DB1 in the West US region on a new server.
Which three actions should you perform in sequence?
Answer is E-C-B
Step 1: From the Geo-replication settings of DB1, select West US
The following steps create a new secondary database in a geo-replication partnership.
1. In the Azure portal, browse to the database that you want to set up for geo-replication.
2. (Step 1) On the SQL database page, select geo-replication, and then select the region to create the secondary database.
3. (Step 2-3) Select or configure the server and pricing tier for the secondary database.
Step 2: Create a target server and select a pricing tier
Step 3: On the secondary server, create logins that match the SIDs on the primary server.
References:
https://docs.microsoft.com/en-us/azure/sql-database/sql-database-active-geo-replication-portal
You need to create an Azure Cosmos DB account that will use encryption keys managed by your organization.
Which four actions should you perform in sequence?
Answer is B-E-D-A
Step 1: Create an Azure key vault and enable purge protection
Using customer-managed keys with Azure Cosmos DB requires you to set two properties on the Azure Key Vault instance that you plan to use to host your encryption keys: Soft Delete and Purge Protection.
Step 2: Create a new Azure Cosmos DB account, set Data Encryption to Customer-managed Key (Enter key URI), and enter the key URI
Data stored in your Azure Cosmos account is automatically and seamlessly encrypted with keys managed by Microsoft (service-managed keys). Optionally, you can choose to add a second layer of encryption with keys you manage (customer-managed keys).
Step 3: Add an Azure Key Vault access policy to grant permissions to the Azure Cosmos DB principal
Add an access policy to your Azure Key Vault instance
Step 4: Generate a new key in the Azure key vault
Generate a key in Azure Key Vault
Reference:
https://docs.microsoft.com/en-us/azure/cosmos-db/how-to-setup-cmk

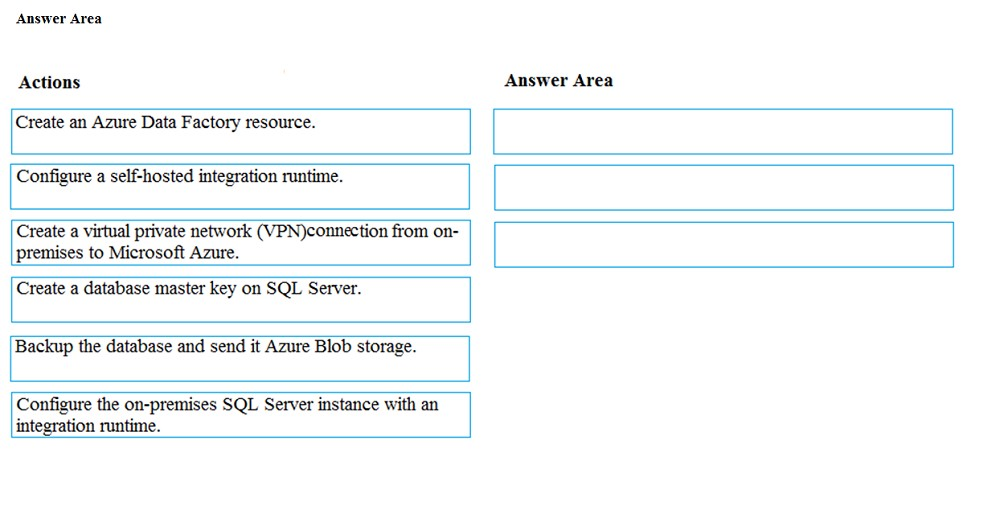

Your company manages on-premises Microsoft SQL Server pipelines by using a custom solution.
The data engineering team must implement a process to pull data from SQL Server and migrate it to Azure Blob storage. The process must orchestrate and manage the data lifecycle.
You need to configure Azure Data Factory to connect to the on-premises SQL Server database.
Which three actions should you perform in sequence?
Step 1: Create a virtual private network (VPN) connection from on-premises to Microsoft Azure.
You can also use IPSec VPN or Azure ExpressRoute to further secure the communication channel between your on-premises network and Azure.
Azure Virtual Network is a logical representation of your network in the cloud. You can connect an on-premises network to your virtual network by setting up IPSec VPN (site-to-site) or ExpressRoute (private peering).
Step 2: Create an Azure Data Factory resource.
Step 3: Configure a self-hosted integration runtime.
You create a self-hosted integration runtime and associate it with an on-premises machine with the SQL Server database. The self-hosted integration runtime is the component that copies data from the SQL Server database on your machine to Azure Blob storage.
Note: A self-hosted integration runtime can run copy activities between a cloud data store and a data store in a private network, and it can dispatch transform activities against compute resources in an on-premises network or an Azure virtual network. The installation of a self-hosted integration runtime needs on an on- premises machine or a virtual machine (VM) inside a private network.
References:
https://docs.microsoft.com/en-us/azure/data-factory/tutorial-hybrid-copy-powershell

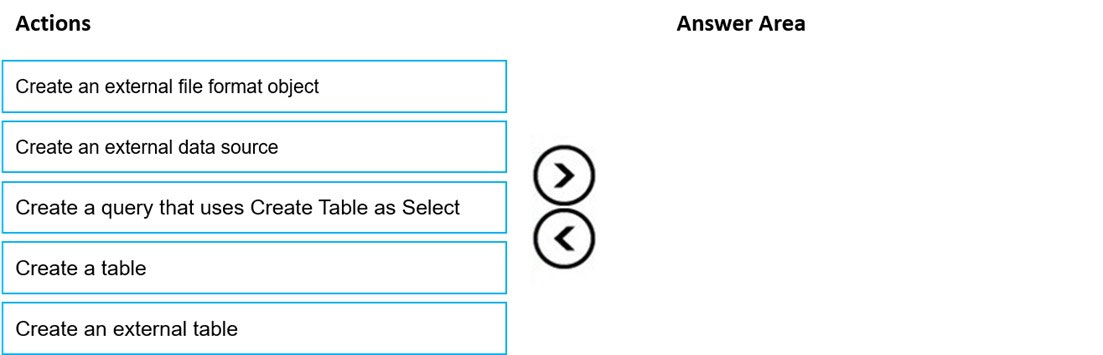

You need to build a solution to ensure that users can query specific files in an Azure Data Lake Storage Gen2 account from an Azure Synapse Analytics serverless SQL pool.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Step 1: Create an external data source
You can create external tables in Synapse SQL pools via the following steps:
1. CREATE EXTERNAL DATA SOURCE to reference an external Azure storage and specify the credential that should be used to access the storage.
2. CREATE EXTERNAL FILE FORMAT to describe format of CSV or Parquet files.
3. CREATE EXTERNAL TABLE on top of the files placed on the data source with the same file format.
Step 2: Create an external file format object
Creating an external file format is a prerequisite for creating an external table.
Step 3: Create an external table
Reference:
https://docs.microsoft.com/en-us/azure/synapse-analytics/sql/develop-tables-external-tables

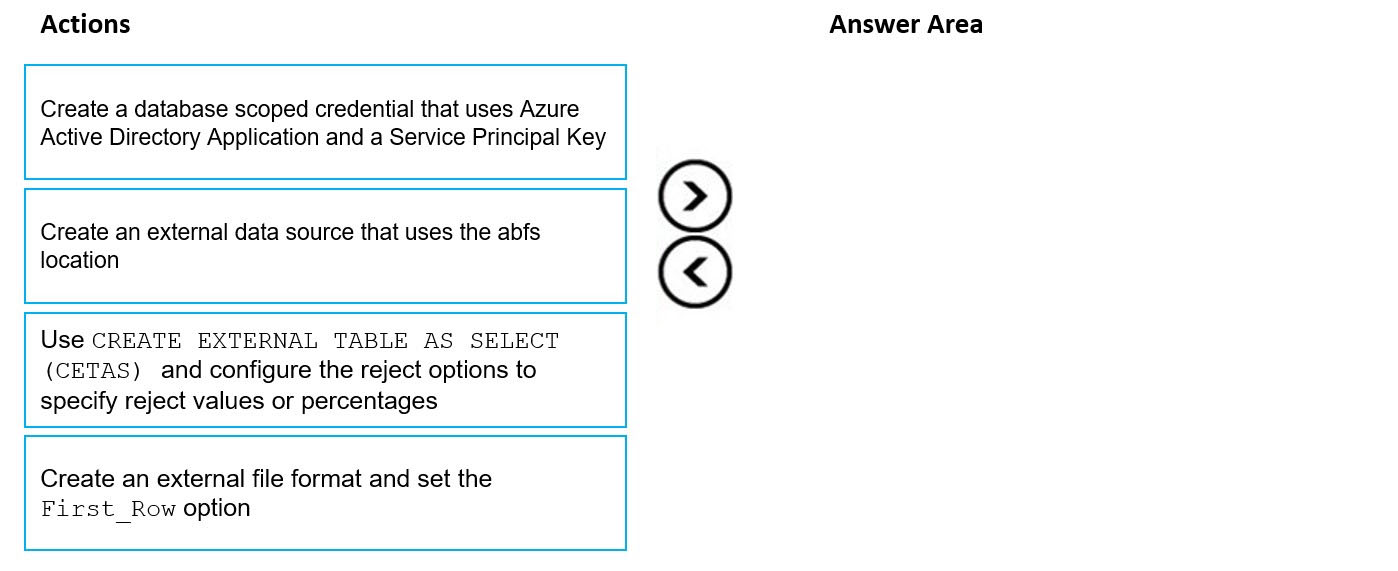

You have data stored in thousands of CSV files in Azure Data Lake Storage Gen2. Each file has a header row followed by a properly formatted carriage return (/ r) and line feed (/ n).
You are implementing a pattern that batch loads the files daily into an enterprise data warehouse in Azure Synapse Analytics by using PolyBase.
You need to skip the header row when you import the files into the data warehouse. Before building the loading pattern, you need to prepare the required database objects in Azure Synapse Analytics.
Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Step 1: Create an external data source that uses the abfs location
Create External Data Source to reference Azure Data Lake Store Gen 1 or 2
Step 2: Create an external file format and set the First_Row option.
Create External File Format.
Step 3: Use CREATE EXTERNAL TABLE AS SELECT (CETAS) and configure the reject options to specify reject values or percentages
To use PolyBase, you must create external tables to reference your external data.
Use reject options.
Note: REJECT options don't apply at the time this CREATE EXTERNAL TABLE AS SELECT statement is run. Instead, they're specified here so that the database can use them at a later time when it imports data from the external table. Later, when the CREATE TABLE AS SELECT statement selects data from the external table, the database will use the reject options to determine the number or percentage of rows that can fail to import before it stops the import.
Reference:
https://docs.microsoft.com/en-us/sql/relational-databases/polybase/polybase-t-sql-objects
https://docs.microsoft.com/en-us/sql/t-sql/statements/create-external-table-as-select-transact-sql

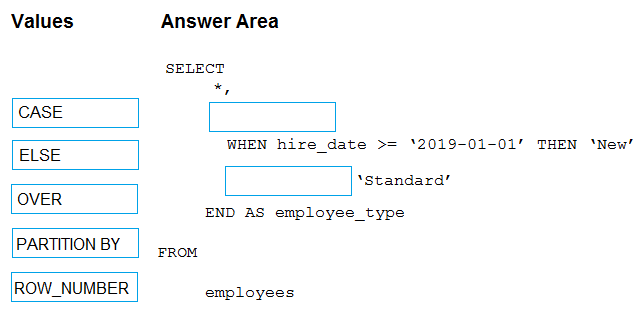

You have the following table named Employees.
You need to calculate the employee_type value based on the hire_date value.
How should you complete the Transact-SQL statement? To answer, drag the appropriate values to the correct targets. Each value may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
Box 1: CASE
CASE evaluates a list of conditions and returns one of multiple possible result expressions.
CASE can be used in any statement or clause that allows a valid expression. For example, you can use CASE in statements such as SELECT, UPDATE, DELETE and SET, and in clauses such as select_list, IN, WHERE, ORDER BY, and HAVING.
Syntax: Simple CASE expression:
CASE input_expression -
WHEN when_expression THEN result_expression [ ...n ]
[ ELSE else_result_expression ]
END -
Box 2: ELSE
Reference:
https://docs.microsoft.com/en-us/sql/t-sql/language-elements/case-transact-sql

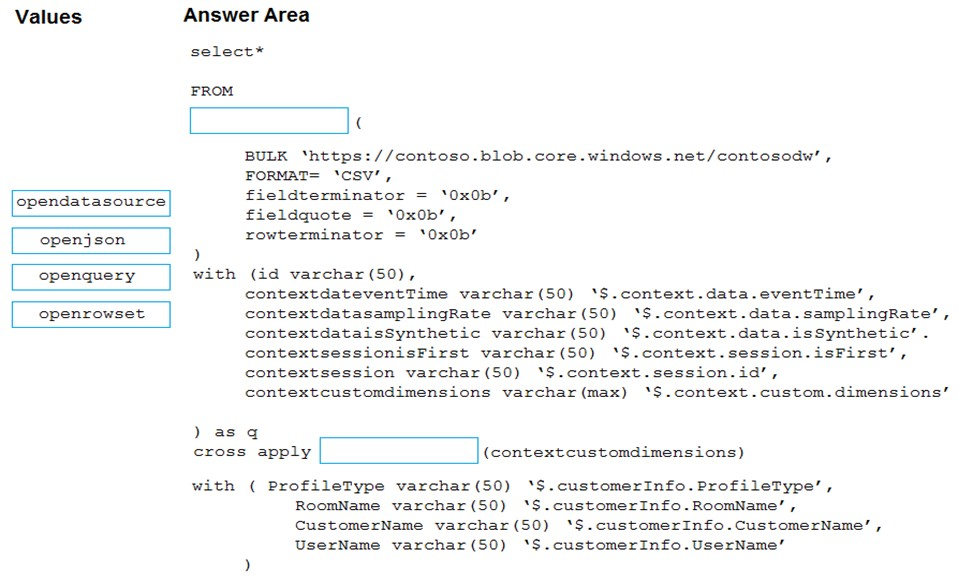

You have an Azure Synapse Analytics workspace named WS1.

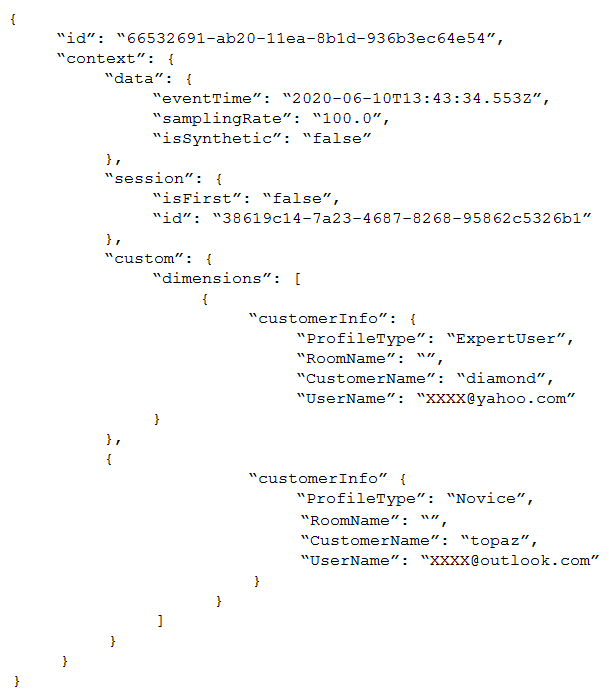

You have an Azure Data Lake Storage Gen2 container that contains JSON-formatted files in the following format.
You need to use the serverless SQL pool in WS1 to read the files.
How should you complete the Transact-SQL statement?
Box 1: openrowset
The easiest way to see to the content of your CSV file is to provide file URL to OPENROWSET function, specify csv FORMAT.
Example:
SELECT *
FROM OPENROWSET(
BULK 'csv/population/population.csv',
DATA_SOURCE = 'SqlOnDemandDemo',
FORMAT = 'CSV', PARSER_VERSION = '2.0',
FIELDTERMINATOR =',',
ROWTERMINATOR = ' '
Box 2: openjson
You can access your JSON files from the Azure File Storage share by using the mapped drive, as shown in the following example:
SELECT book.* FROM -
OPENROWSET(BULK N't:ooksooks.json', SINGLE_CLOB) AS json
CROSS APPLY OPENJSON(BulkColumn)
WITH( id nvarchar(100), name nvarchar(100), price float,
pages_i int, author nvarchar(100)) AS book
Reference:
https://docs.microsoft.com/en-us/azure/synapse-analytics/sql/query-single-csv-file
https://docs.microsoft.com/en-us/sql/relational-databases/json/import-json-documents-into-sql-server
